CONTROLE
Mult.
36€/15€(KIT)
To buy, simply send an email: LARIX ELEKTRO
Don't forget to precise which version you want: with out without switches.
WHAT'S THAT THING ?
This is a configurable multiple module.

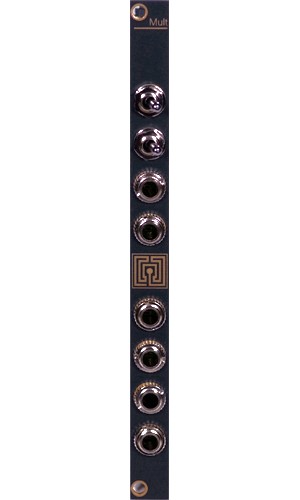

There are two versions: 8 jacks, or 2 switches + 6 jacks.
Of course, the package include only one module, not the two versions !
On the back, for each jack:
- Access to the tip of the connected jack cable.
- Access to the Normaled pin.
With the jumper, it's possible to select which one are connected to the internal bus, to connect multiple jacks together like classical multiple modules.
One more jumper to connect the internal bus of the 1 to 4 jacks with the internal bus of the 5 to 8 jacks.
The version with switches has three pins on the back for each switches.
The module can also be used as an extension to LE modules with hidden functionnalities:
Like the 4TOMS or the DUAL UNDULA OSCILLATOR.
The module is also useful for all modules with access point at the back, or to hack/modify modules.
Aluminium or black&gold front panel
This is a configurable multiple module.
There are two versions: 8 jacks, or 2 switches + 6 jacks.
Of course, the package include only one module, not the two versions !
On the back, for each jack:
- Access to the tip of the connected jack cable.
- Access to the Normaled pin.
With the jumper, it's possible to select which one are connected to the internal bus, to connect multiple jacks together like classical multiple modules.
One more jumper to connect the internal bus of the 1 to 4 jacks with the internal bus of the 5 to 8 jacks.
The version with switches has three pins on the back for each switches.
The module can also be used as an extension to LE modules with hidden functionnalities:
Like the 4TOMS or the DUAL UNDULA OSCILLATOR.
The module is also useful for all modules with access point at the back, or to hack/modify modules.
Aluminium or black&gold front panel
Technical specifications:
+12V : 0mA
-12V : 0mA
2HP, 25mm deep (Approx.)
+12V : 0mA
-12V : 0mA
2HP, 25mm deep (Approx.)
Package Contents:

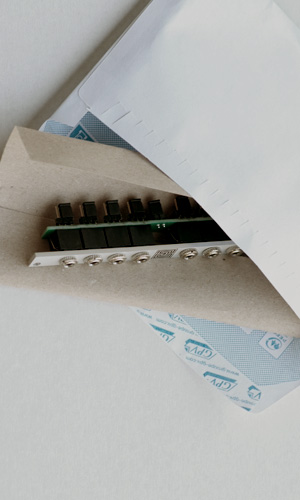

One module, wrapped in paper protection.
(When ordering, pleas precis which version)
Two M3 screws.
Quick start map of the module.
Cables, to use the module as an extension, are not provided with the module.
One module, wrapped in paper protection.
(When ordering, pleas precis which version)
Two M3 screws.
Quick start map of the module.
Cables, to use the module as an extension, are not provided with the module.
User manual 1: CONTROLE MULTIPLE
User manual 2: CONTROLE MULTIPLE (Switches version)
Build doc (KIT version): CONTROLE MULTIPLE BUILD
This module is an extension of most of all LE modules:
AUDIO 4TOMS
AUDIO DUAL UNDULA OSCILLATOR
User manual 2: CONTROLE MULTIPLE (Switches version)
Build doc (KIT version): CONTROLE MULTIPLE BUILD
This module is an extension of most of all LE modules:
AUDIO 4TOMS
AUDIO DUAL UNDULA OSCILLATOR
