MACRO
SWITCH
135€
To buy, see DEALERS , or simply send an email: LARIX ELEKTRO
WHAT'S THAT THING ?
The SWITCH is just eight big and handy push buttons, with LED.
They generate a GATE signal (0 or 5V).
The GATE output is not on the module itself, but on a remote module: Ext.
Thus your fingers are not cluttered by the cables.

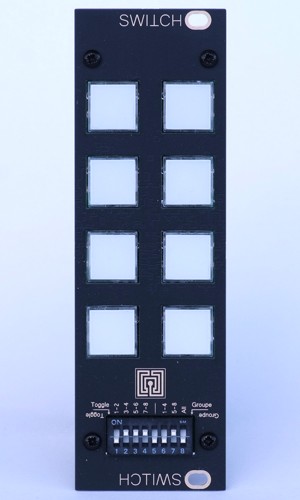

The operation of the switches are modifiable with a set of 8 DIP switches
- PUSH mode: ON when you push the button, OFF after release it.
- TOOGLE: Push to change the status
- GROUPE (or selector, or radio buttons): by 4 or 8 of the switches
Only one is active among the buttons
WARNING:

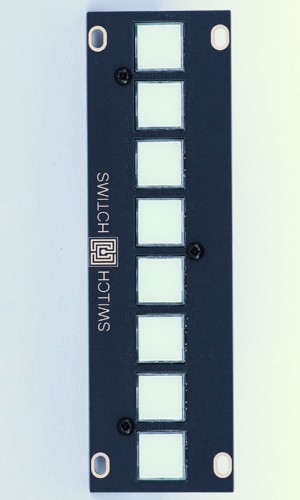

There are two versions of the module: 3U or 1U
The package containes ONLY ONE of the version.
Technical specifications:
+12V : 100mA (MAX)
-12V : 32mA (MAX)
25mm (3U) or 35mm (1U) deep (Approx.)

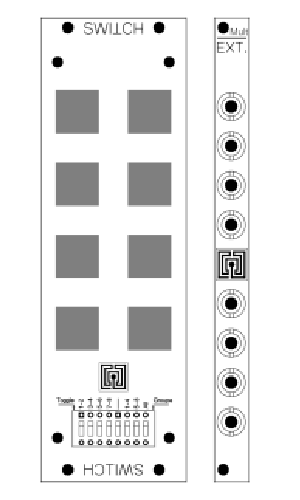

3U: 8HP or 1U: 26HP + Ext.: 3U, 2HP
+12V : 100mA (MAX)
-12V : 32mA (MAX)
25mm (3U) or 35mm (1U) deep (Approx.)
3U: 8HP or 1U: 26HP + Ext.: 3U, 2HP
Package Contents

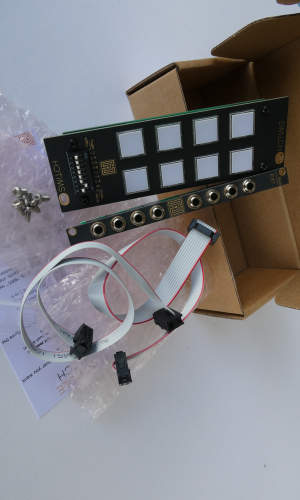

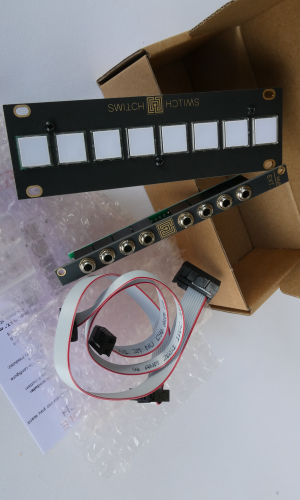

The module, wrapped in antistatic protection. (1U or 3U)
The Extension (Mult.) module
Six M3 screws.
The power cable.
The extension cable.
Quick start map of the module.
The module, wrapped in antistatic protection. (1U or 3U)
The Extension (Mult.) module
Six M3 screws.
The power cable.
The extension cable.
Quick start map of the module.
User manual: MACRO SWITCH
