MACRO
KNOBS
120€
To buy, see DEALERS , or simply send an email: LARIX ELEKTRO
WHAT'S THAT THING ?

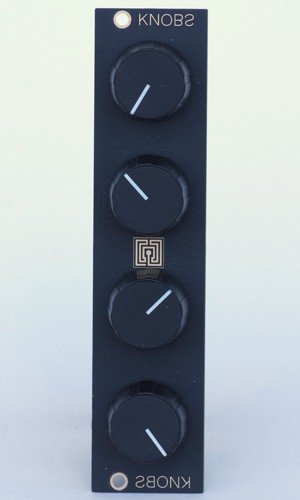

The KNOBS is just our big and handy rotative potentiometers.
They generate a CV value

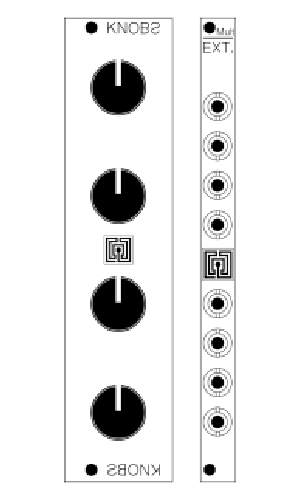

The CV output is not on the module itself, but on a remote module: Ext.
Thus your fingers are not cluttered by the cables.
The range of the CV is adjustable at the back of the module with jumpers. One for the lower and one for the higher value.
-10V, -5V or 0V and 0V, +5V or +10V.

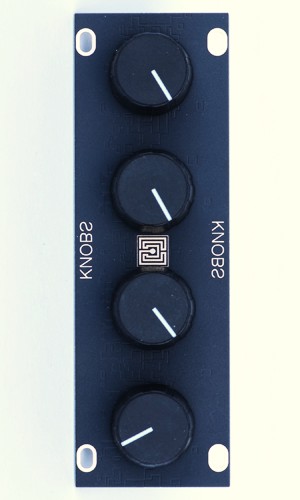

The package contains another front panel, so you can use it into a 1U raw of your rack.
Technical specifications:
+12V : 8mA
-12V : 8mA
35mm deep (Approx.)
3U: 6HP, 1U: 24HP + Ext.: 3U, 2HP
+12V : 8mA
-12V : 8mA
35mm deep (Approx.)
3U: 6HP, 1U: 24HP + Ext.: 3U, 2HP

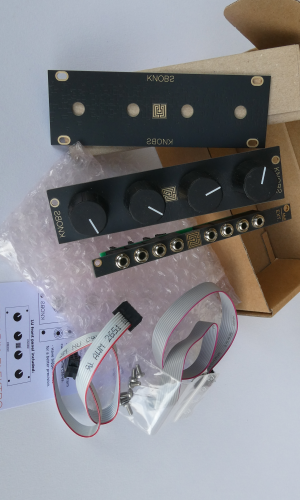

Package Contents
The module, wrapped in antistatic protection.
The Extension (Mult.) module
Six M3 screws.
The power cable.
The extension cable.
The 1U front panel.
Quick start map of the module.
The module, wrapped in antistatic protection.
The Extension (Mult.) module
Six M3 screws.
The power cable.
The extension cable.
The 1U front panel.
Quick start map of the module.
User manual: MACRO KNOBS
Extensions:
Controle 4 VCA: 4VCA (soon)
